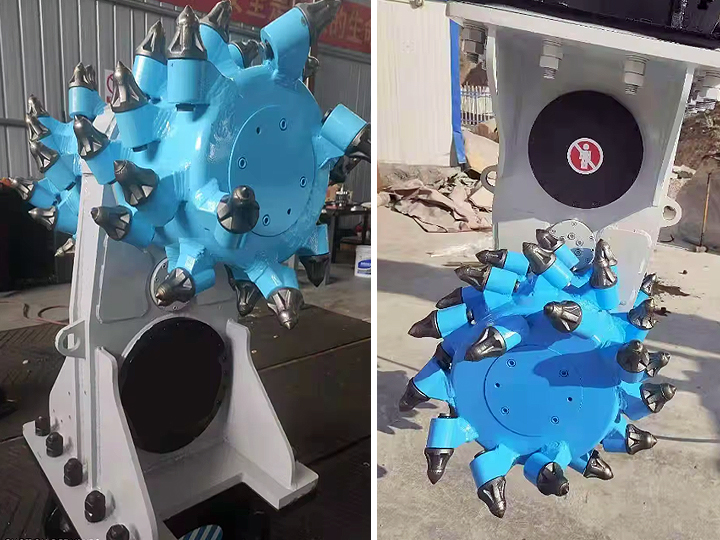

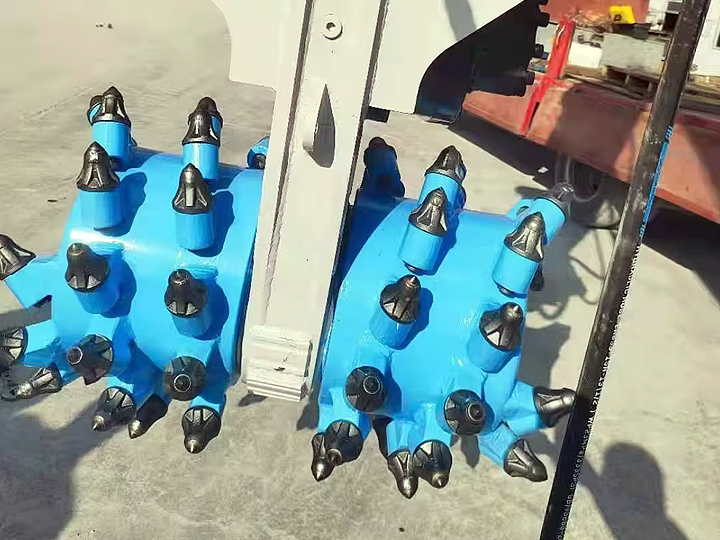

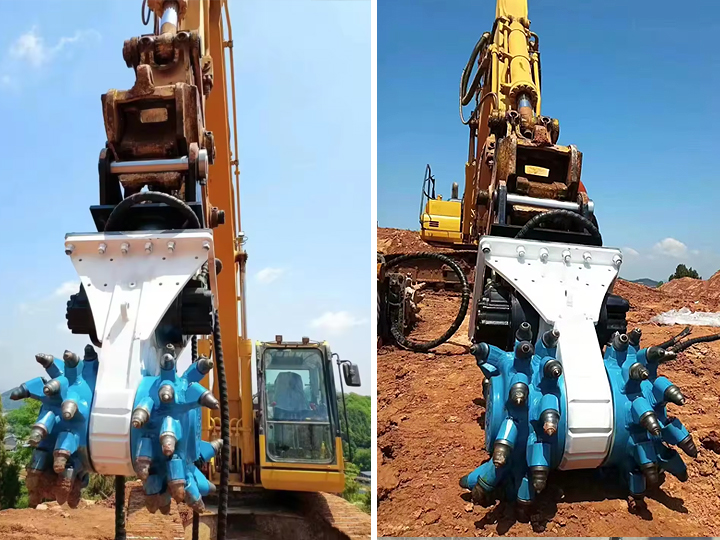

Excavator milling drum cutter machine can be installed on any type of hydraulic excavator, efficient replacement of bucket, crushing hammer, hydraulic shear and other general configuration, widely used in tunnel, ditch, municipal pipeline excavation, road surface crushing, mining, rock frozen soil excavation; Open pit coal mine excavation, surface renewal and iron and steel industry, forestry and other construction fields.
Different Configuration Different Cost. contact us for Details and Final Cost.
Technical Data
Model | BC140 | BC160 | BC180 | BC210 | BC240 | BC280 | BC350 | BC400 |
Carrier tonnage(T) | 5-10 | 10-15 | 15-21 | 22-26 | 20-24 | 22-30 | 30-40 | 50-70 |
Input Power(KW) | 22 | 45 | 55 | 80 | 65 | 70 | 110 | 200 |
Max Pressure(Mpa) | |
| 40 | 100-110 | 100-140 | 130-180 | 160-190 | 200-250 | 250-320 | 350-450 |
Speed(r/min) | 0-120 | 0-100 | 0-80 | 0-80 | 0-90 | 0-70 | 0-60 | 0-60 |
Max Picks Force (KN) | 18 | 28 | 43.5 | 48 | 50 | 52 | 68 | 128 |
Max Torque(Nm) | 3200 | 5400 | 5600 | 9000 | 12800 | 14000 | 23500 | 47000 |
| 36 | 42 | 44 | 44 | 46 | 56 | 44-56 | 44-56 |

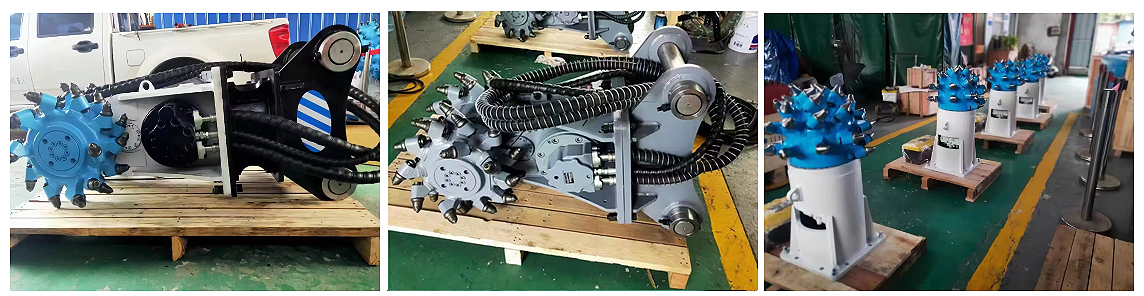

Packing and Delivery
 |  |
Standard Accessories:*Hydraulic Oil Hoses*2pcs *Overflow Pipe*1set *Tool Box with necessary maintenance tools*1set | Packing:*Inner is stretch film *Outside is export wooden case |
ATTACHMENTS
