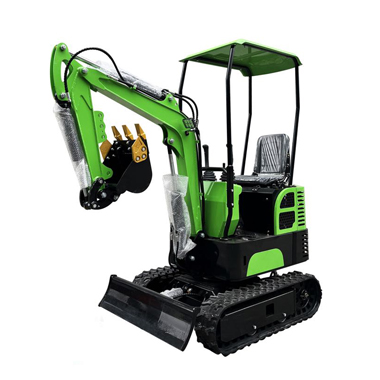

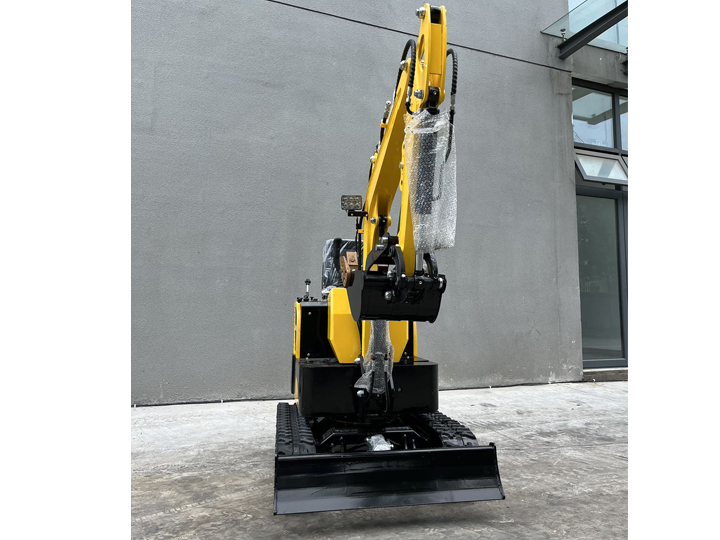

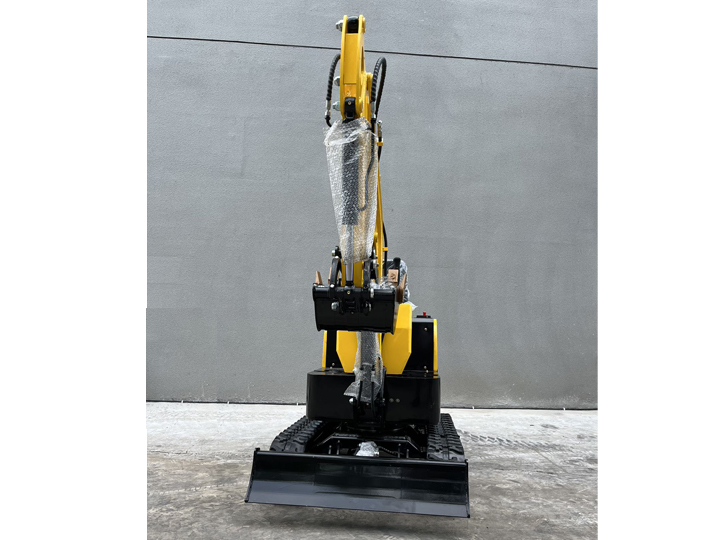

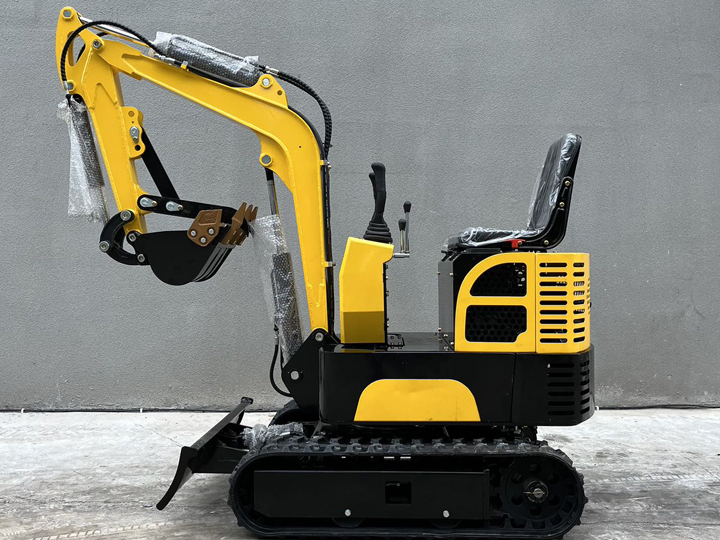

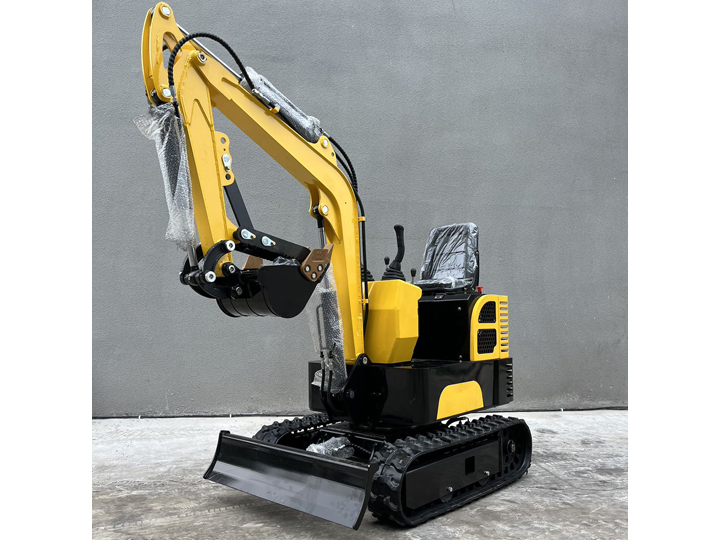

Discover the Baicai BC-12 mini excavator, a perfect blend of power and versatility for your mid-sized projects. This video highlights the BC-12’s advanced features, including its robust hydraulic system and ease of maneuverability. Whether you’re tackling landscaping, trenching, or small construction work, the BC-12 is engineered to deliver impressive performance. See it in action and learn why it's a trusted choice for both amateurs and professionals.
Mini excavators demonstrate significant advantages in agricultural planting, landscaping, orchard and forestry trenching and fertilization, municipal engineering, and mountain road construction projects, contributing greatly to saving manpower and resources in these projects.
Performance Parameters | Value | Dimensional Parameters | Value |
---|---|---|---|
Operating Weight | 1200 kg | Engine Model | Kofo / Changchai 192 |
Bucket Capacity | 0.022 m³ | Rated Power | 12 HP |
Maximum Travel Speed | 2.5 km/h | Maximum Digging Height | 2490 mm |
Slew Speed | 9 rpm | Maximum Dumping Height | 1745 mm |
Maximum Gradeability | 30° | Maximum Digging Depth | 1700 mm |
Maximum Digging Force | 6.5 kN | Maximum Vertical Digging Depth | 1655 mm |
Length | 2870 mm | Maximum Digging Radius | 3030 mm |
Width | 1000 mm | Maximum Push Blade Height | 170 mm |
Height (with/without canopy) | 2285 mm / 2030 mm | Maximum Push Blade Depth | 240 mm |
Push Blade Width | 937 mm | Track Length | 1200 mm |
Push Blade Height | 210 mm | Working Pressure | 16 MPa |
