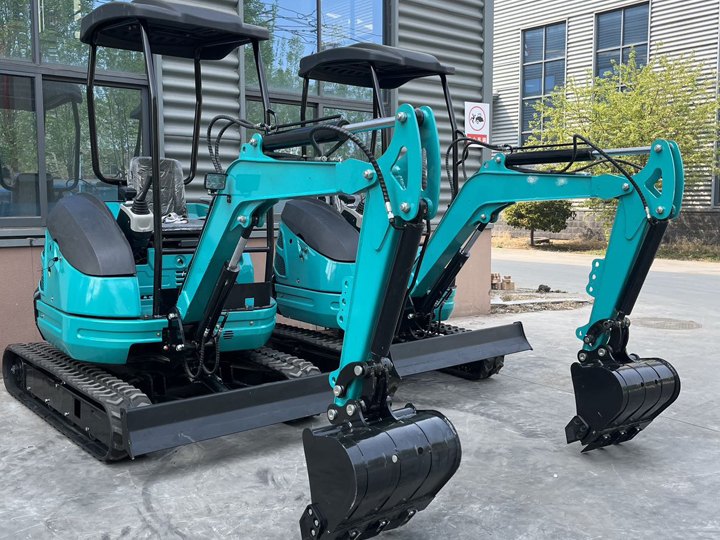

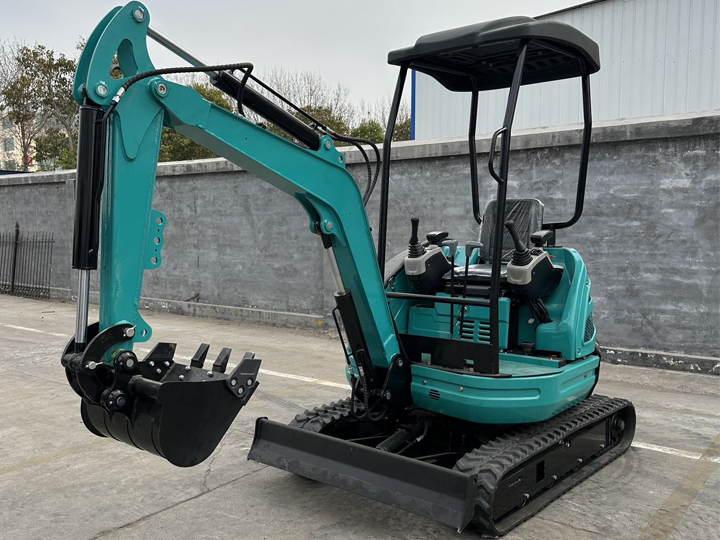

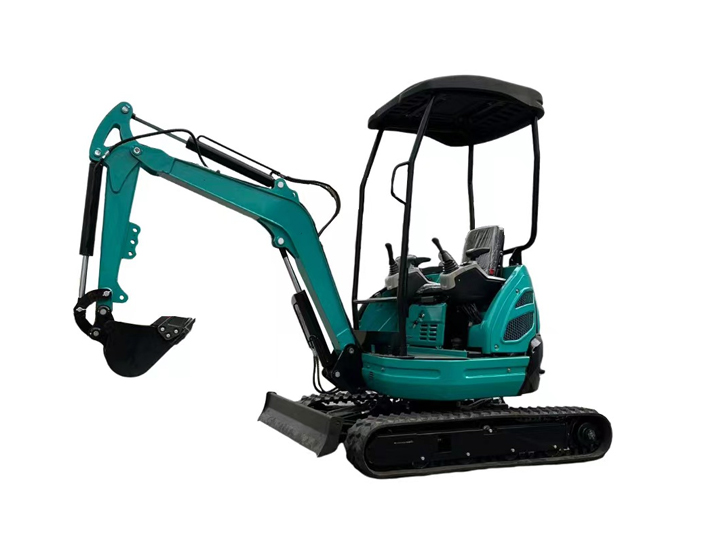

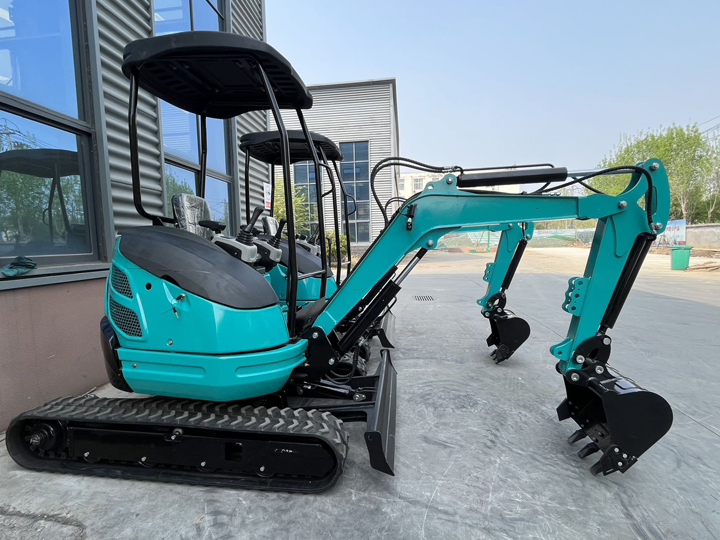

BC-ME25 Mini Excavators are suitable for agricultural planting, landscaping, orchard trenching and fertilizing, small earthwork projects, municipal engineering, road repair, basement and indoor construction, concrete breaking, laying cables, water pipelines, garden cultivation, and river and ditch dredging projects, among various other working environments.
They are equipped with multiple functions such as digging, breaking, clearing hooks, drilling, and bulldozing, allowing for quick attachment changes. This increases the machine's utilization significantly and makes it suitable for various soil types. The excavators are efficient, easy to operate, compact, flexible, and convenient to transport, capable of operating in tight spaces.
Basic Performance Parameters
Parameter
Value
Operating Weight(kg)
1750
Bucket Capacity(m³)
0.054
Travel Speed Low/High
(Km/h):
0-1.8
Gradeability (%):
15
A Maximum Digging Height (mm):
2540
B Maximum Dumping Height(mm):
1876
C Maximum Digging Depth( mm):
2260
E Maximum Digging Radius( mm):
3695
Side Swing
Side Swing Angle (Left/Right)
/
Chassis Extension
Body
Parameter
Value
J Total Length (mm)
3450
K Total Width (mm)
1400
L Total Height(mm)
1860
Blade Width/Height (mm)
1300/220
Engine
Parameter
Value
Engine Brand：
Kubota
Engine Model:：
D902
Maximum Power (Kw):
18.4
Maximum Speed(rpm):
2800
Number of Cylinders：
3
Cooling Method：
Water Cooling
Engine Oil Capacity(L)
1.1
Fuel Type：
Diesel
Fuel Grade：
5号/-0
Theoretical Fuel Consumption (L/h):
0.5-1.2
Hydraulic System
Parameter
Value
Main Pump Type/Model：
TFA10VO28LADS/53R
Main Pump Brand
Taifeng
Rated Setting Pressure (Mpa):
22
Maximum Flow of Main Pum(L/min):
21.6
Multi-Way Valve：
Electro-Hydraulic Load Sensing Multi-Way Valve
Multi-Way Valve Brand：
Taifeng
Rated Setting Pressure(Mpa)
22
Travel Hydraulic Motor Type：
612-4174-1
Travel Motor Brand：
Eaton
Swing Hydraulic Motor Type：
SW2.5K-245
Tracks
O-Rubber (WidthPitchNumber of Links):
230*72*54
O-Steel (WidthPitchNumber of Links):
/
Configuration
Parameter
Value
Cab
Canopy
Armrest
Thumb Clamp
Counterweight
Tensioning Type
Hydraulic Tensioning
Air Conditioning
Fuel Tank
Parameter
Value
Fuel Tank(L):
15.9
Hydraulic Oil Tank(L)
21.6
Note: Symbols used - ● Standard, ○ Optional, - None
