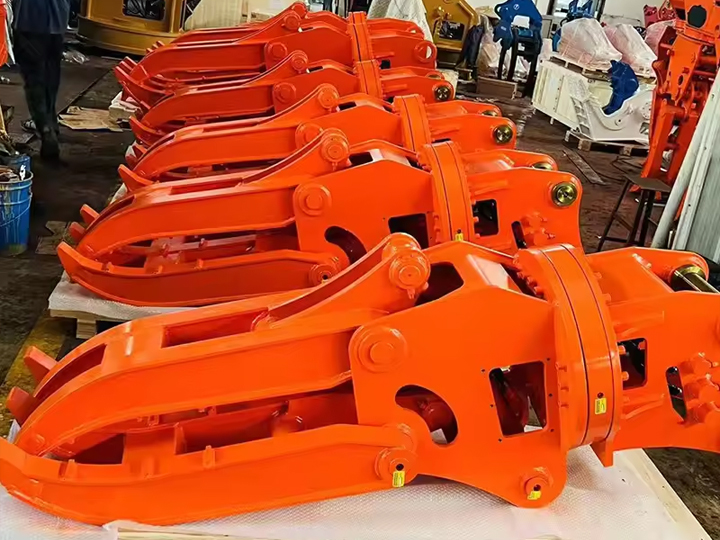

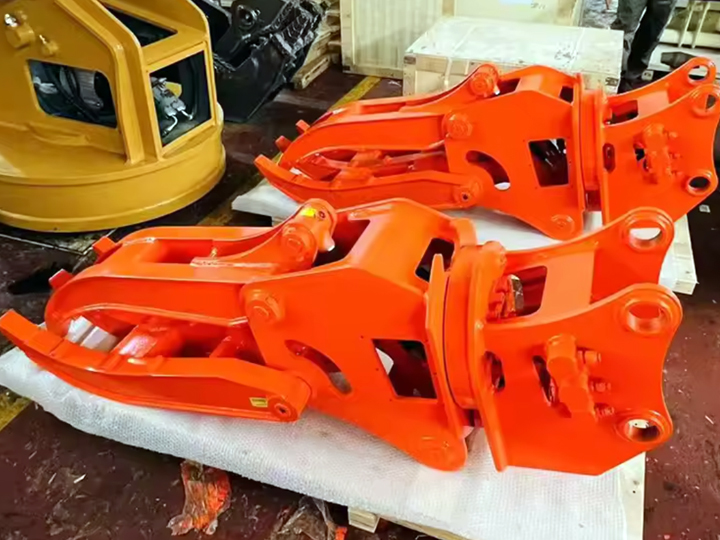

Economic Single Cylinder Hydraulic Grapple for excavator with good quality .
- Single-cylinder rotating grapples are manufactured strong enough to handle stones and steel scraps at quarry,landscaping and construction.
- Single-cylinder rotating grapple is also a universal tool for material loading, scrap sorting, and demolition.
- Hydraulic rotation, manual rotation or no-rotation are available.
- This grapple is widely used for rock,stone,steel,scrap metal handling.
- Handle control or foot valve control based on 2 pipelines or 4 pipelines on your machine.
Main Features
- Material: Q355B Mn plate.
- Original EATON brand motor, Taiwan Winner valve core, quick-plug integrated wiring harness.
- Unlimited clockwise and anti-clockwise 360° rotary swing bearing system 3+2, 4+3, 5+4 fingers for your option.
- Pin and bush heat-treated, increase strength and wear-resistance.
- Brake valve make it safer from inertia or accident.
- Welders with ten years of experience, the welding process removes the hard force, and there will be no welding cracks for our hydraulic steel grapple.
Parameters
| Item | Unit | HM08 | HM06 | HM04 |
| Weight | kg | 1880 | 1000 | 450 |
| Max Jaw Opening | mm | 2278 | 1623 | 1389 |
| Oil Pressure | kg/cm2 | 180 | 160 | 120 |
| Oil Flow | L/Min | 160-180 | 120-160 | 90-120 |
| Suitable Excavator | Ton | 18-25 | 9-16 | 5-8 |

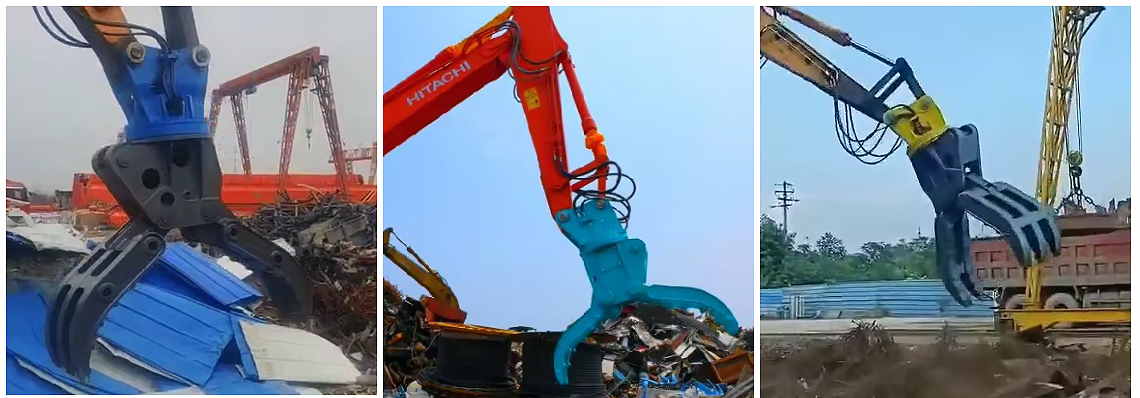

Application Realistic Photos
